Reverb/delay/echo effect pedaal

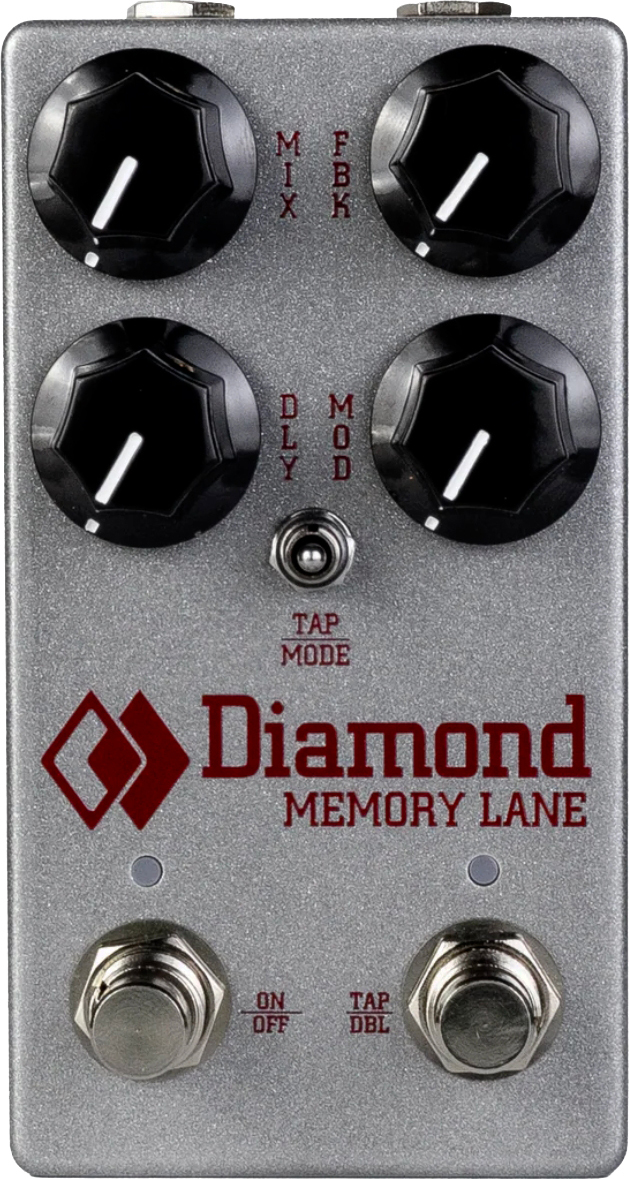

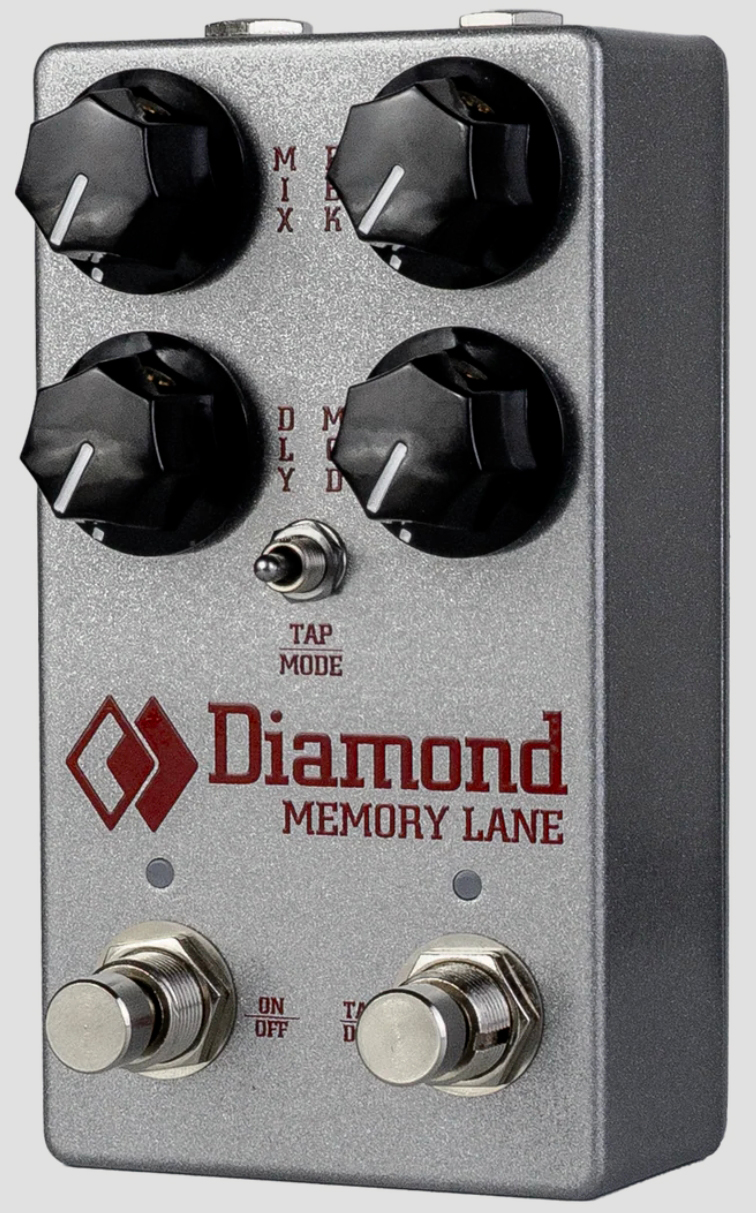

The second generation Memory Lane DIAMOND Memory Lane STM32 Delay captures the lush warmth of classic analog delays with the clarity, control, and reliability of modern digital design. Whether you’re chasing subtle slapback, pulsing rhythmic echoes, or expansive ambient textures, Memory Lane delivers beautifully voiced repeats that sit effortlessly behind your playing.
At its core lies Diamond’s digital Bucket Brigade Delay (dBBD) architecture, a unique system that blends analog companding, precision filtering, and a custom-voiced delay line. The result is unmistakably musical, dimensional sound with up to 2.4 seconds of delay time.
With industrial-grade converters mated to warm and dynamic analog circuitry, and built-in protection against polarity and over-voltage mistakes, the Memory Lane isn’t just versatile—it’s road-ready.
At its core lies Diamond’s digital Bucket Brigade Delay (dBBD) architecture, a unique system that blends analog companding, precision filtering, and a custom-voiced delay line. The result is unmistakably musical, dimensional sound with up to 2.4 seconds of delay time.
With industrial-grade converters mated to warm and dynamic analog circuitry, and built-in protection against polarity and over-voltage mistakes, the Memory Lane isn’t just versatile—it’s road-ready.
Lire la suite
Technische Specificities
- Delay Ja
- voor elektrische gitaar Ja
- DIAMOND Memory Lane STM32 Delay
- SKU Diamond DIMLS
- Versatile delay
- Compact effect pedal
- Combines the rich warmth of vintage analogue delay with the precision and controllability of modern digital technology

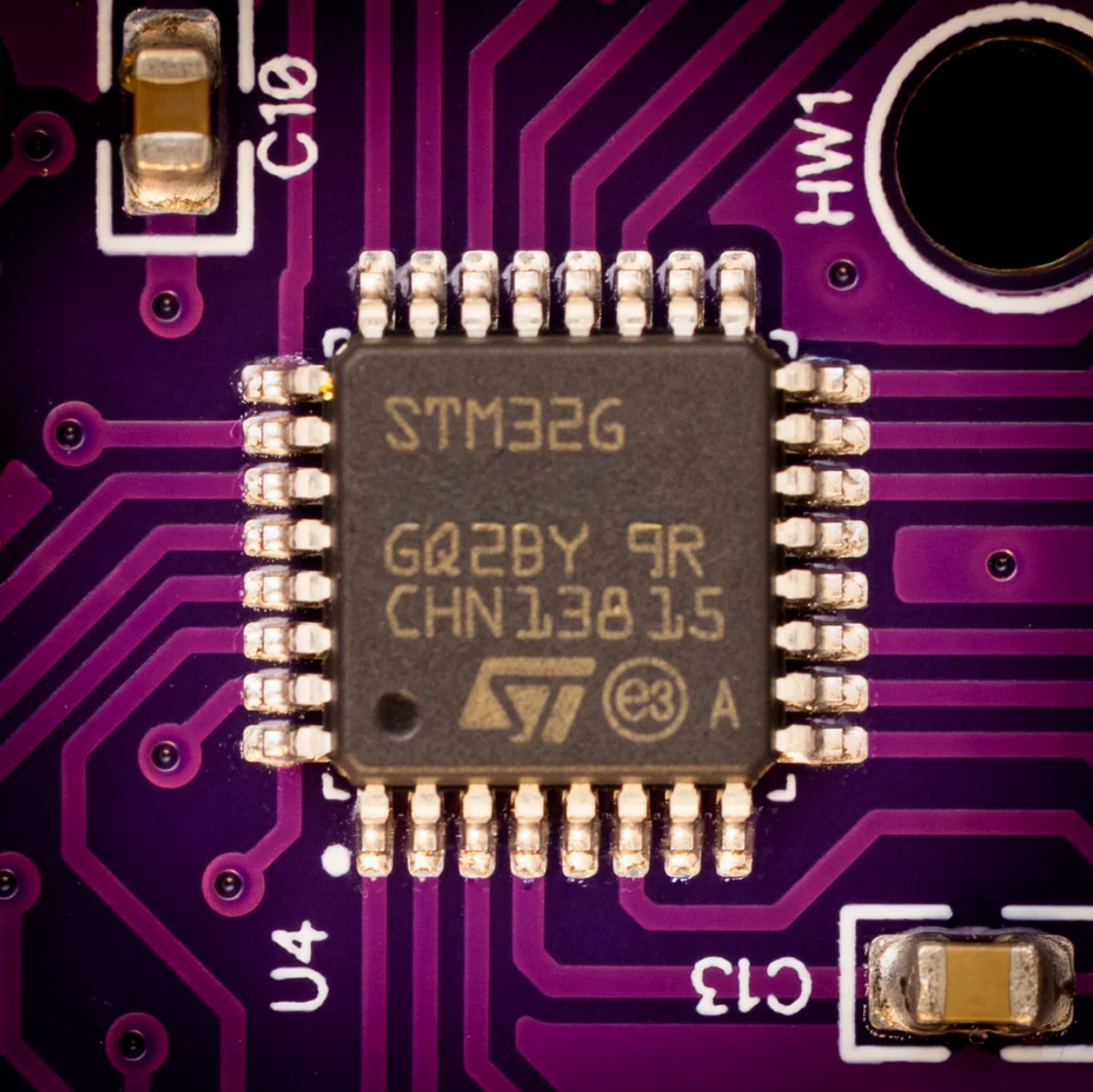

- STM32 ARM Cortex processor
- Circuit digital Bucket Brigade Delay (dBBD)
- 4x modes MLjr, Vintage, Galloping 2-Head et Ambient 3-Head
- MLjr Mode – Classic fixed-rate delay with silent tempo changes, true to the Memory Lane Jr
- Vintage Mode – Warm, saturated repeats that capture the soul of vintage analog delays
- Galloping 2-Head – A rhythmic, dual-head pattern inspired by the Counterpoint delay
- Ambient 3-Head – Expansive, cascading repeats perfect for layered soundscapes
- Delay range 25ms à 2.4s
- Tap Tempo (hold the Tap Tempo footswitch to seamlessly double your delay time)
- Quarter note (green LED)
- Dotted eighth note (yellow LED)
- Half note (red LED)
- Buffered bypass with trails

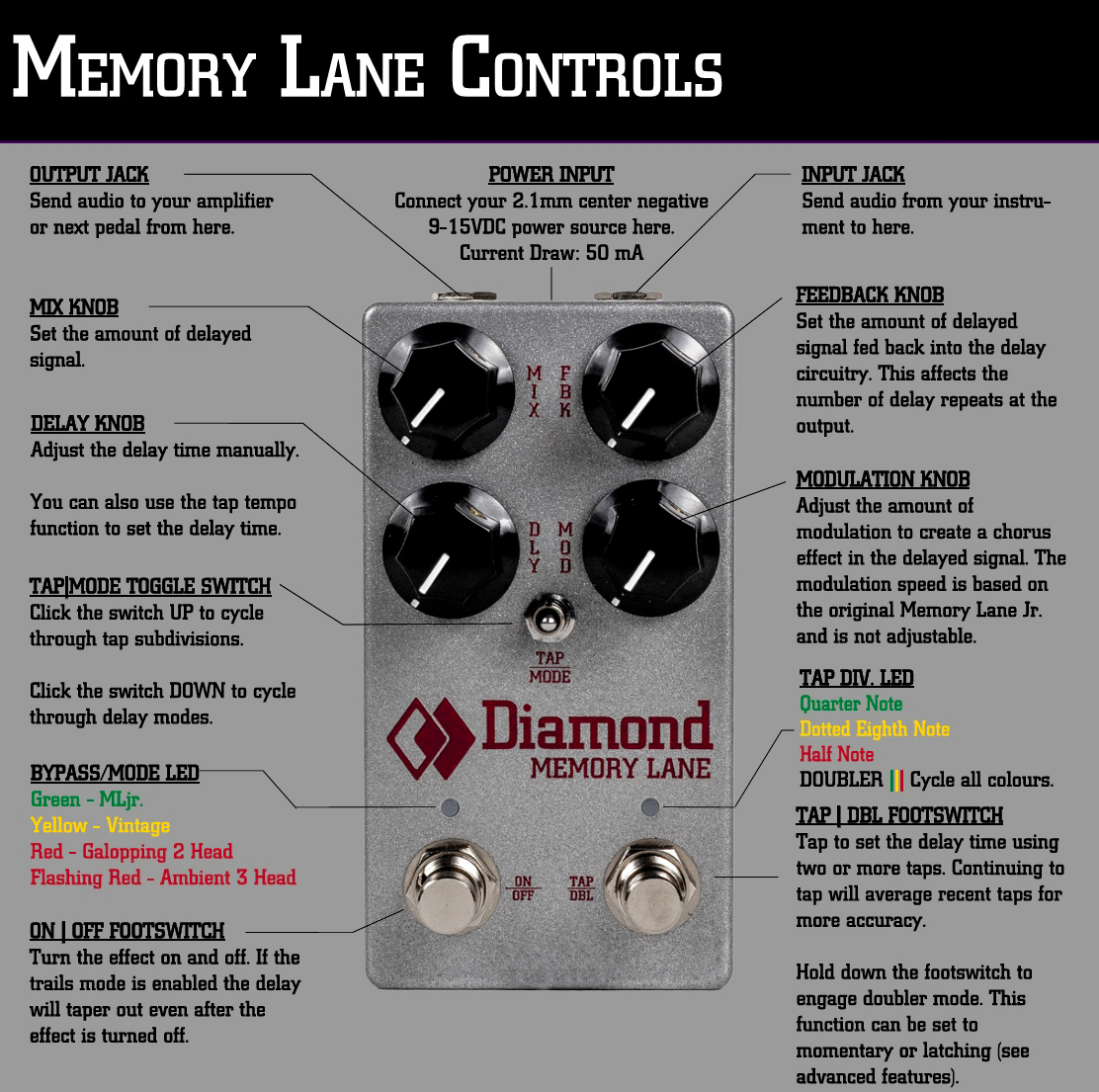

- Controls : see pictures

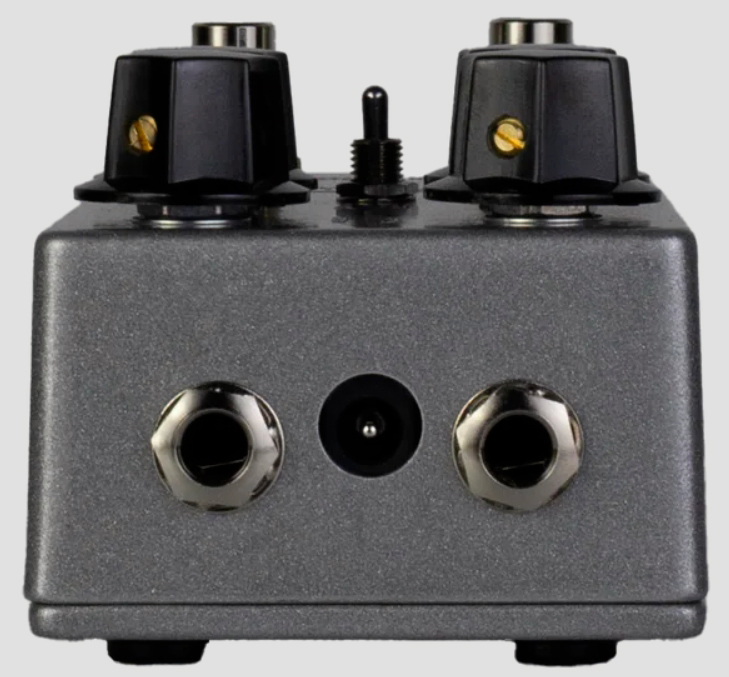

- In/outs : see pictures
- Switchable True/Trails bypass
- Powered by optional 9V DC adaptor (barrel plug 2,1 x 5,5 mm, center negative)
- Current draw 50mA
- 67 x 122 x 40 mm
- 310g
- Manual : https://shorturl.at/avNY4
