Thunderbolt audio-interface

With 32 AN/NA conversion channels, versatile ante/HDX/Thunderbolt connectivity, and powerful integrated effects processing, the Galaxy 32 Synergy Core audio interface from Antelope combines extensive I/O, superior synchronization, and robust DSP in a 1U chassis, making it an extremely attractive solution for sound engineers in recording studios, post-production facilities, broadcast trucks, and live performance applications.

Main Features of the Galaxy 32 Synergy Core

32 AN/NA conversion channels for exceptional audio quality.
Versatile connectivity: ante/HDX/Thunderbolt.
Powerful integrated effects processing for maximum flexibility.
Compact 1U chassis suitable for space-limited installations.

Expanded Connectivity

DB25 connectors for analog inputs/outputs.
Digital inputs/outputs including fiber optic MADI, AES3, and S/PDIF.

Advanced Synchronization Technology

Master clock with 64-bit AFC technology for optimal jitter management.
Six wordclock outputs, one wordclock input, one loop-sync input/output, and one 10 MHz atomic clock input for precise synchronization.

Intuitive and Remote Control

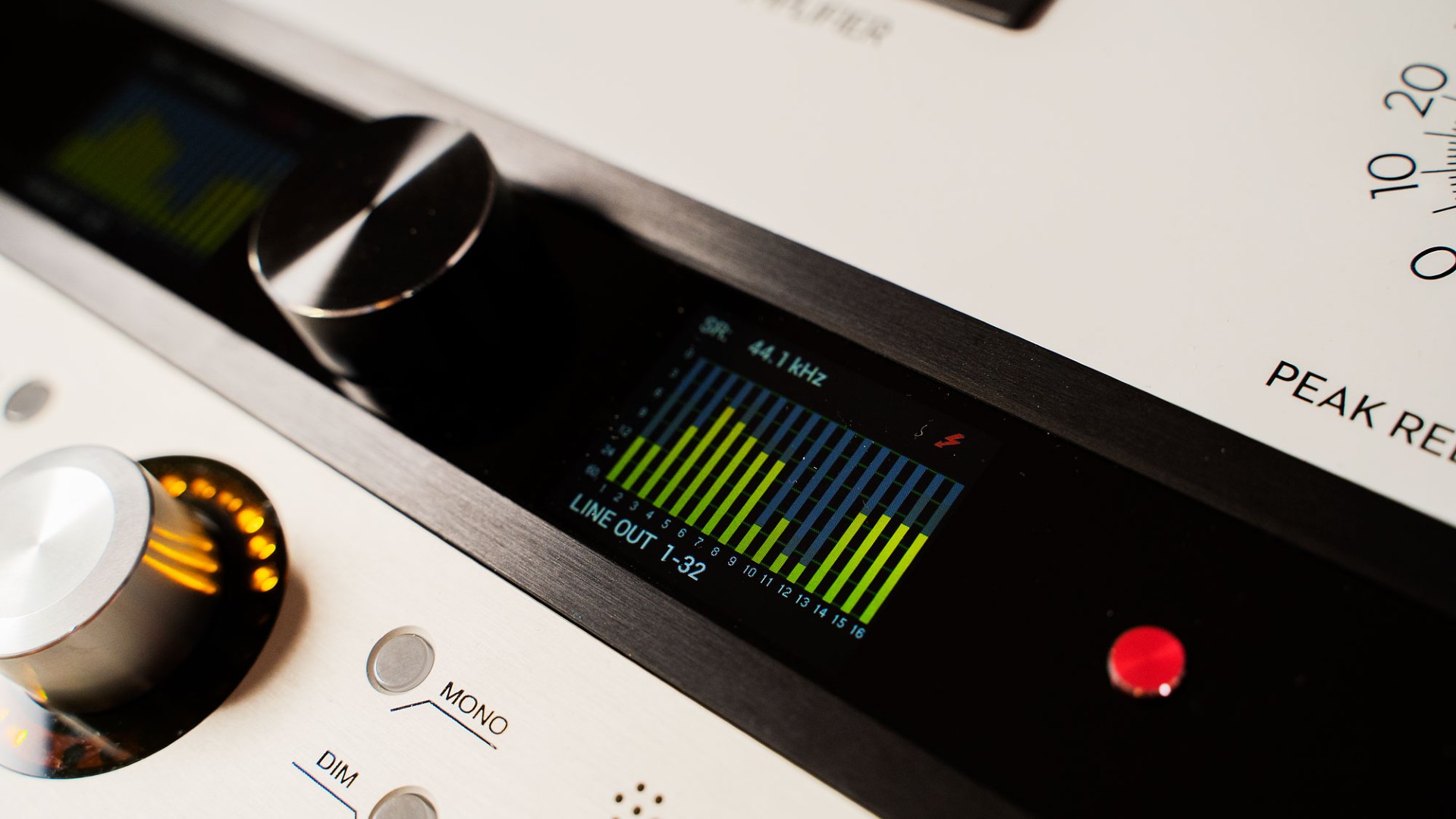

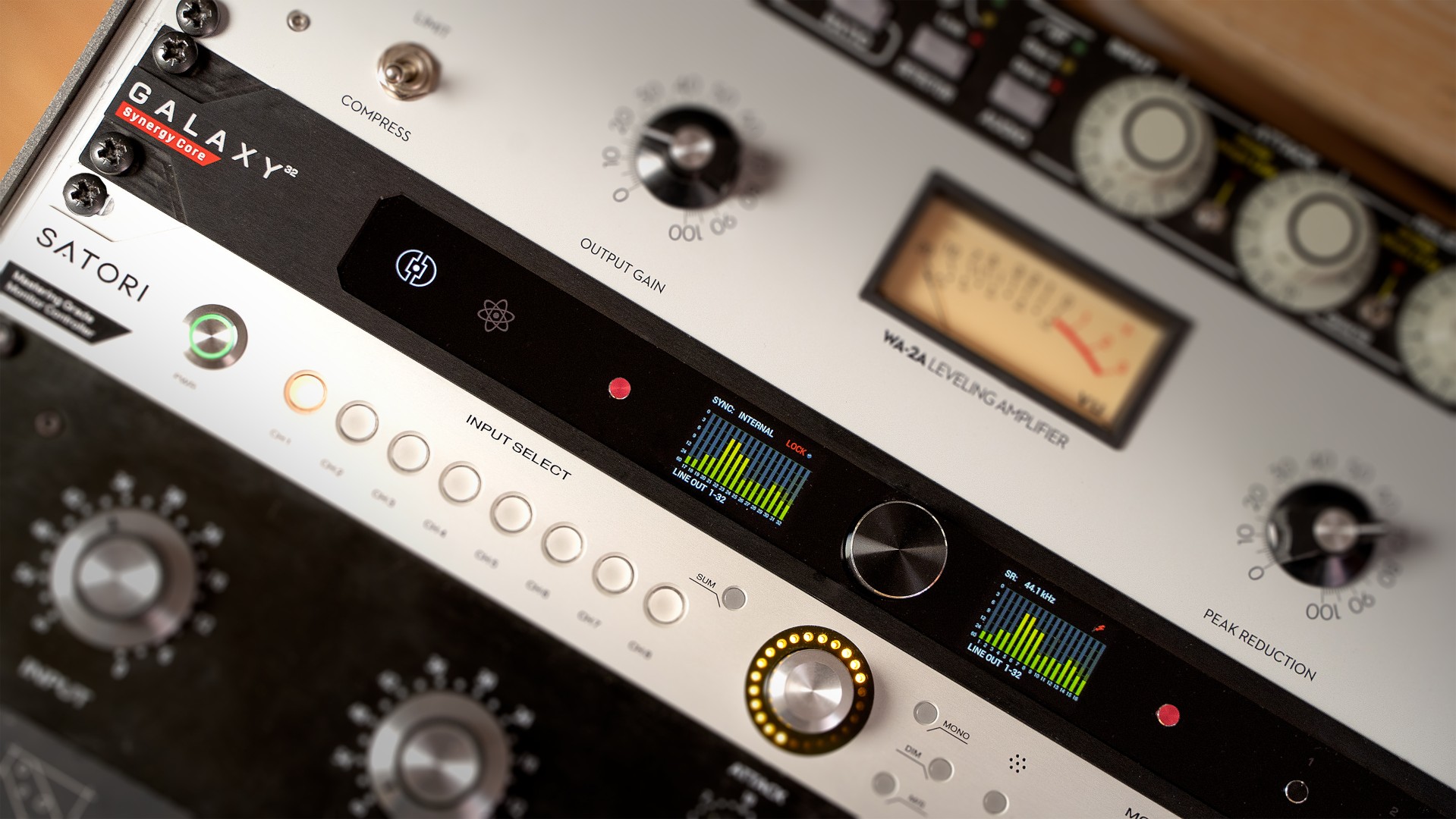

Large touchscreen display on the front panel for easy setup.
Remote control via network or from a secondary computer.
Customizable presets for quick optimization according to needs.

Real-Time Effects

The Galaxy 32 Synergy Core includes a set of 37 real-time effects from Antelope, modeling renowned audio hardware such as preamps, channel strips, equalizers, compressors, etc. These effects are easily accessible through the interface's 6 DSP chips and two FPGA processors, offering minimal latency and not burdening the computer's CPU.

Expert Opinion

The Galaxy 32 Synergy Core audio interface offers exceptional sound quality along with remarkable flexibility and ease of use. Its expanded connectivity and advanced features make it an ideal choice for sound professionals across various fields.
The advanced synchronization technology ensures seamless integration into any digital audio system, providing unmatched stability and precision.
With its real-time effects and powerful integrated processing, the Galaxy 32 Synergy Core enables users to explore new creative possibilities while enjoying exceptional audio quality.

Technisch papier

DSP Ja

Connectivity
- 32 analog input channels on 4 DSUB-25 connectors with AC/DC coupling switch (TASCAM standard).
- 32 analog output channels on 4 D-Sub 25 connectors with DC coupling (TASCAM standard).
- Dante™ audio over IP with primary/secondary port for long-distance audio transfer.
- Two HDX ports: up to 64 input/output channels for Pro Tools HD/HDX integration.
- One Thunderbolt™ 3 port with custom macOS and Windows drivers for native DAW support.
- Digital Inputs/Outputs: ADAT, S/PDIF, and 64 channels of optical MADI.
Conversion and Synchronization
- Analog-to-Digital Converter dynamic range: 121 dB, Digital-to-Analog Converter dynamic range: 128 dB for artifact-free recording sessions.
- Mastering-grade monitoring converter with 130 dB dynamic range for critical listening without signal coloration or degradation.
- Proprietary Acoustically Focused Clocking technology and 64-bit jitter management algorithm providing enhanced width, separation, and detail in musical performances.
Real-Time Plugin Processing

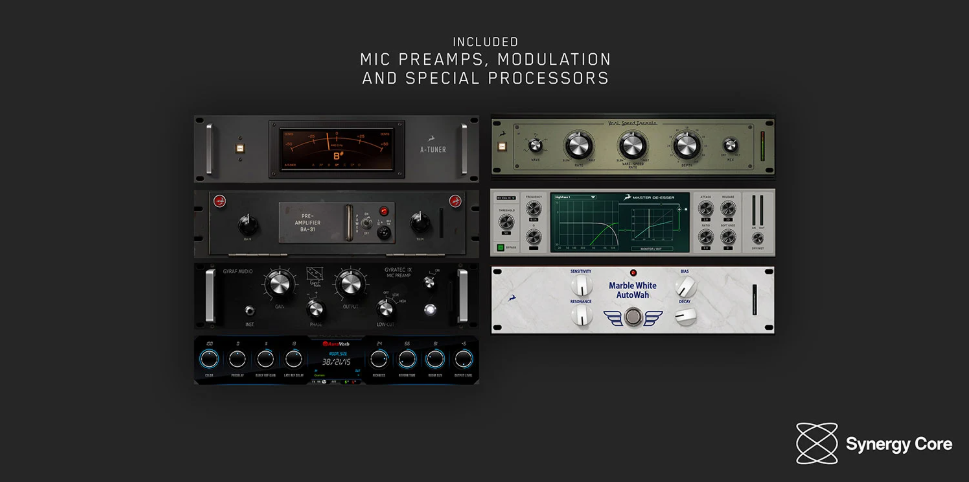

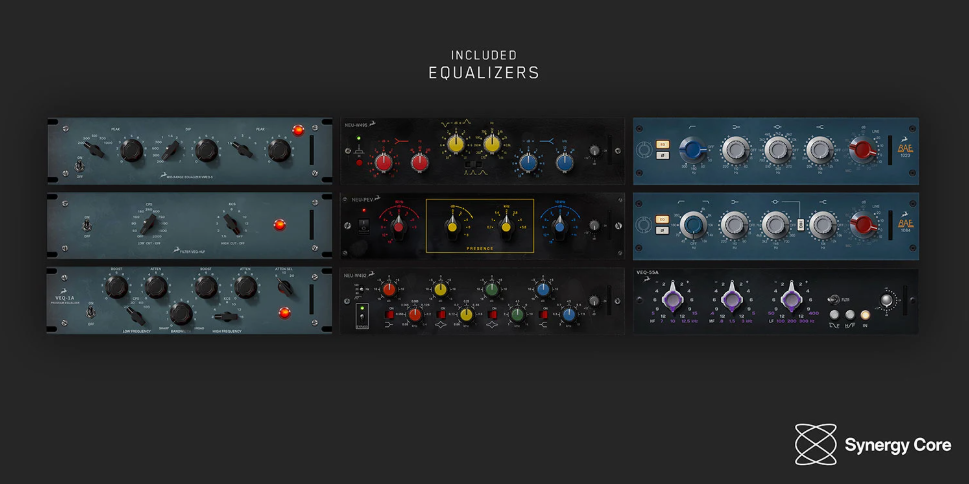

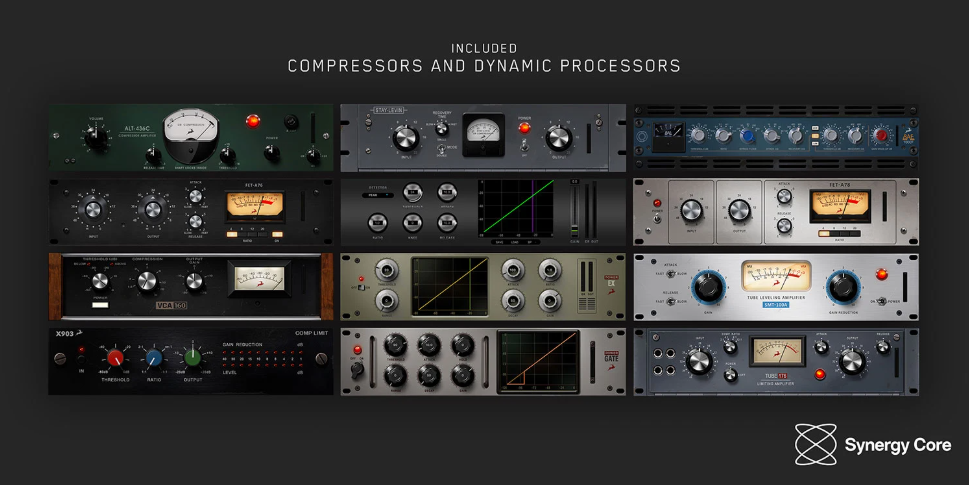

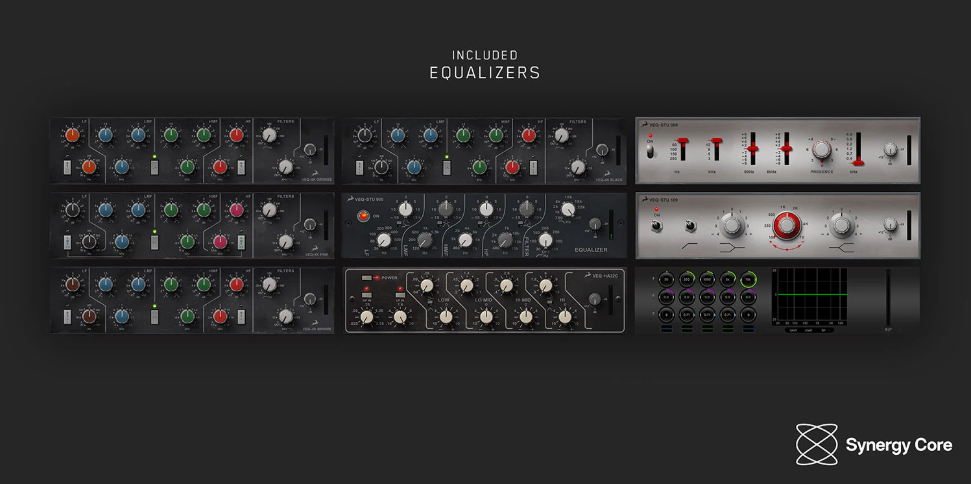

- Collection of 69 Synergy Core analog-modeled plugins;
- Integrated Synergy Core real-time processing platform with 12 × DSP and 2 × FPGA.
- Up to 256 instances of plugins loaded simultaneously across 64 individual virtual racks.
